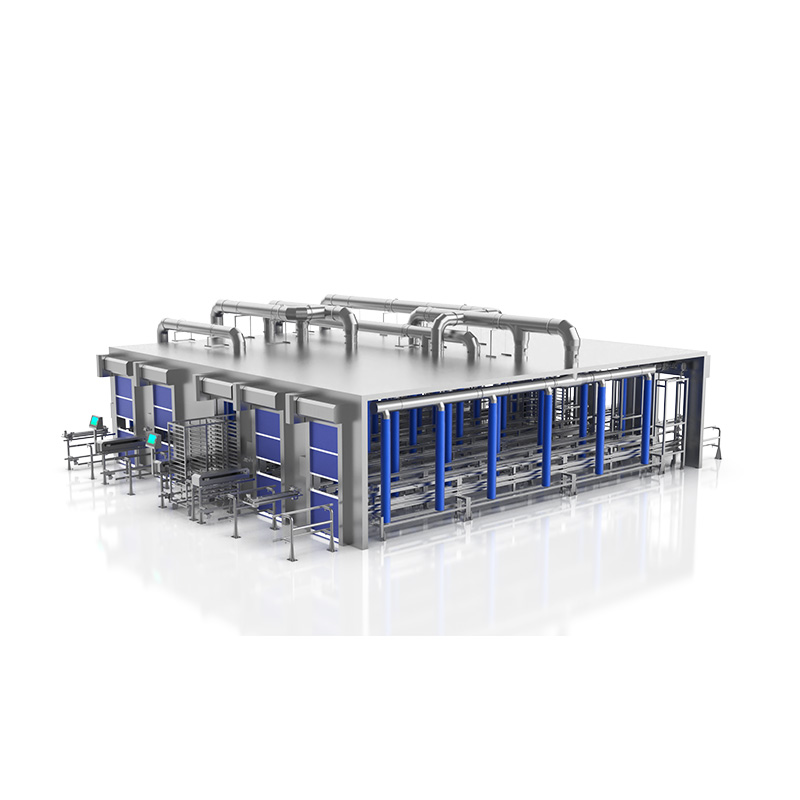

This high-capacity trolley proofer system, also known as the full automated tunnel proofing system for racks, is designed and manufactured by Wuhan Kenxin Automation Technology Co., Ltd. It is suitable for commercial bakery production lines producing toast, hamburgers, Chinese steamed buns, croissants and pizza. The system supports on-line proofing and continuous production, which can adapt to the needs of large-scale baking operations.
Item | Specification |
|---|---|
Usage | Biscuit, Cake, Pizza, Bread |
Timing Device | With Timing Device |
Voltage | 380V |
Insulation Panel | 100mm Thick Polyurethane Foam |
Temperature Accuracy | ±1℃ |
Humidification System | Dry Steam Humidifier (External Steam Source) |
Drive Motor | SEW Gear Reduction Motor |
Power Source | Electric |
Material | Stainless Steel |
Temperature Range | 35-40℃ |
Heating System | External Steam Source + Heat Exchanger |
Waterproofing | Arc-Designed Seams with Waterproof Treatment |
Origin | Hubei, China |
Trademark | KENXIN |
Item | Specification |
|---|---|
Production Capacity | Up to 2000 trays per hour |
Pressed Air | 0.5-0.7MPa |
Total Power | 6.5kw |
Steam Consumption | 200kg per hour |
Overall Dimensions | Customized design |
Transport Package | Wooden |
Package Size | 1219.00cm × 243.00cm × 289.00cm |
Package Gross Weight | 3999.000kg |
Factory Annual Output | 1000 pieces |
The system adopts a side slot-type propulsion structure, which enables automatic skip movement according to preset proofing time and reduces manual intervention. It is equipped with a menu control interface that supports one-button switching between different proofing processes. The temperature control accuracy is ±1℃ and humidity control accuracy is ±2%, which helps prevent water accumulation inside the chamber.
It features stable movement without tray vibration, ensuring uniform proofing results and consistent product shape. The system has multiple safety protections, including automatic emergency shutdown and alarm functions when sensors detect failures. Its compact design saves factory space and supports continuous feeding and discharging. The optimal basket arrangement further enhances the uniformity of temperature and humidity throughout the chamber. The system operates in an airtight manner and maintains a dry interior without water accumulation.
This proofer system is floor-independent and can be customized according to specific production requirements. Customization options include production capacity, equipment dimensions to match plant height and layout, as well as appearance elements such as logo and color. All customizations are based on the actual operational needs of commercial users.
Wuhan Kenxin Automation Technology Co., Ltd. was founded in 2010 and specializes in the research, development, manufacturing and after-sales service of bakery food machinery. The company has obtained ISO9001:2015 quality management system certification and holds more than 20 technical patents. Its equipment has been adopted by many well-known baking enterprises, including COFCO Xiangxue, Mankattan and TOUS les JOURS.
Yes, we are a factory located in Wuhan City, Hubei Province, China, with independent R&D and production capabilities.
We use food-grade materials including stainless steel, food-grade aluminum and aluminum steel for equipment production.
Yes, we provide customized design services. Please provide your detailed factory layout and production requirements, and we will design a solution accordingly.
Yes, we support on-demand customization including logo, color and size customization of the equipment appearance.
Please send us your specific production requirements and any relevant product images. We will provide a customized solution and exact price based on your needs.
