| Quantity: | |
|---|---|
Usage | Biscuit, Cake, Pizza, Bread |
|---|---|
Timing Device | With Timing Device |
Voltage | 380V |
Keywords | Dough Proofer |
Insulation Panel | 100mm Thick Polyurethane Foam |
Temperature Accuracy | ±1℃ |
Humidification System | Dry Steam Humidifier (External Steam Source) |
Drive Motor | S E W Gear Reduction Motor |
Specification | Customized |
Origin | Hubei, China |
Power Source | Electric |
|---|---|
Type | Proofing Machine |
Customized | Customized |
Material | Stainless Steel |
Temperature Range | 35-40℃ |
Heating System | External Steam Source + Heat Exchanger |
Waterproofing | Arc-Designed Seams with Waterproof Treatment |
Transport Package | Wooden |
Trademark | KENXIN |
Production Capacity | 1000pieces/Year |
Package Size | 1219.00cm 243.00 289.00cm |
|---|---|
Package Gross Weight | 3999.000kg |

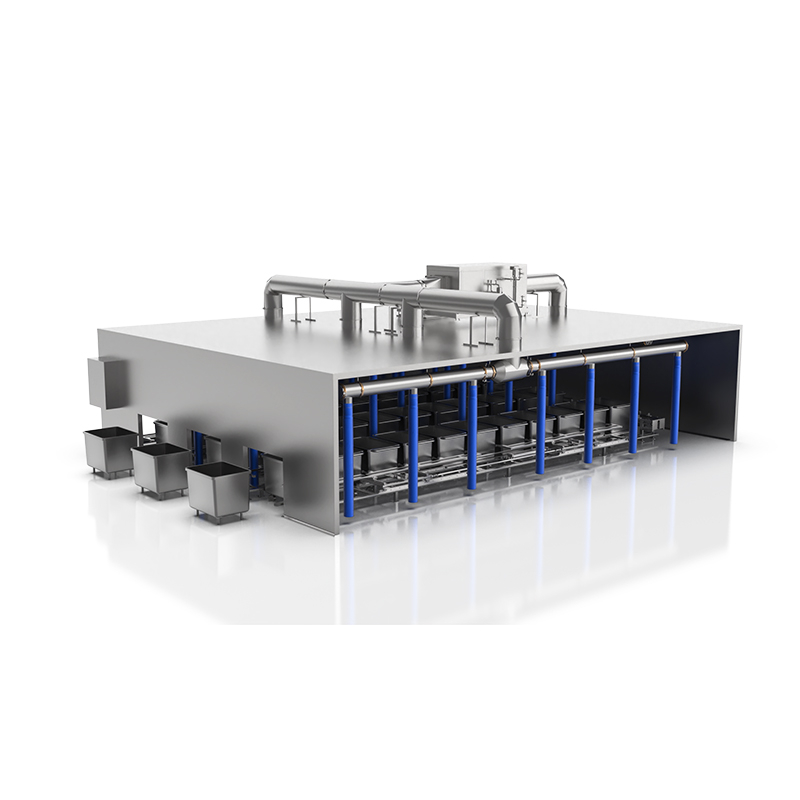

Kenxin Company is the first professional manufacturer and promoter of the Full Automated Tunnel Proofing System for Racks. Suitable for various production lines such as toast, hamburger, Chinese steamed bread / BUN, croissant and pizza.
CHARACTERISTICS:
*The innovative side slot-type propulsion mode can realize the automatic movement of charging skip according to the proofing time and greatly reduce the labor intensity.
*Standardized production process, menu type control interface, one button switch according to different product proofing processes.
*Integration Kenxin innovative temperature/humidity control technology, the overall control of temperature is about ±1℃, with humidity +2%, and effectively solve the problem of waterlogging.
*With Simple equipment structure, and multiple safety protection, this system can run automatically without any operator.
1.On-line proofing, unattended operation throughout the line, and fully automatic continuous production.
2.Stable equipment movement, no vibration of material trays, no uneven proofing of products, and no air leakage.
3.Comprehensive automatic safety control; automatic emergency shutdown and alarm in case of sensor or equipment failure.
4.Compact structure, small space occupation, and efficient continuous feeding and discharging.
5.Reasonable spatial distribution of hanging baskets in the chamber, ensuring uniform temperature and humidity.
6. Low energy consumption ratio, and the interior of the chamber is dry without water accumulation.
Production Capacity | Pressed Air | Total Power | Steam Consumption | Overall Dimensions |
|---|---|---|---|---|
Customer-designed accordingly | 0.5-0.7MPa | 2kw | 100kg/h | customized according to the production capacity |
The whole machine is not restricted by the floor of plant, and can be customized according to
the comprehensive factors such as production capacity, plant height and plant layout.
The product has uniform proofing
organization and consistent shape, without any deviation and air leakage
Simple and efficient equipment structure, assisted by highly reliable control system, multiple safety
protection, which can realize unmanned operation
Q1: Are you a factory or a trading company?
A: We are a factory, Wuhan Kenxin Automation Technology Co., Ltd., located in Wuhan City, Hubei Province, China.
Q2: What materials are your products made of?
A: Food-grade aluminum, aluminum steel, stainless steel, etc.
Q3: Can I customize the product size?
A: Yes, you can. Please provide us with the detailed size requirements, and we will customize it according to your specifications.
Q4: Can I add my logo to the product?
A: We support on-demand customization, including logo customization, color customization, and size customization of the appearance.
Q5: How can I obtain an accurate quote?
A: You can first send us your specific requirements and product images. We will customize a solution for you based on your needs and inform you of the exact price.
