| Quantity: | |
|---|---|
Usage | Biscuit, Bread, Toast |
|---|---|
Timing Device | With Timing Device |
Voltage | 380V |
Keywords | Baking Conveyor Line |
Frame Material | Stainless Steel 304 (Food-Grade) |
Speed Range | 0 - 20 M/Min (Adjustable) |
Length | Customized Per Layout |
Specification | Customized |
Origin | Hubei, China |
Power Source | Electric |
Type | Baking Conveyor Line |
Customized | Customized |
Belt Material | FDA-Approved PVC / PU / Modular Plastic |
Drive System | Gear Motor with Frequency Inverter |
Belt Width | 400 / 600 / 800 / 1000 mm (Customizable) |
Transport Package | Wooden |
Trademark | KENXIN |
Production Capacity | 1000 pieces/Year |
Package Size | 1219.00cm 2443.00cm 289.00cm |
|---|---|
Package Gross Weight | 9999.000kg |

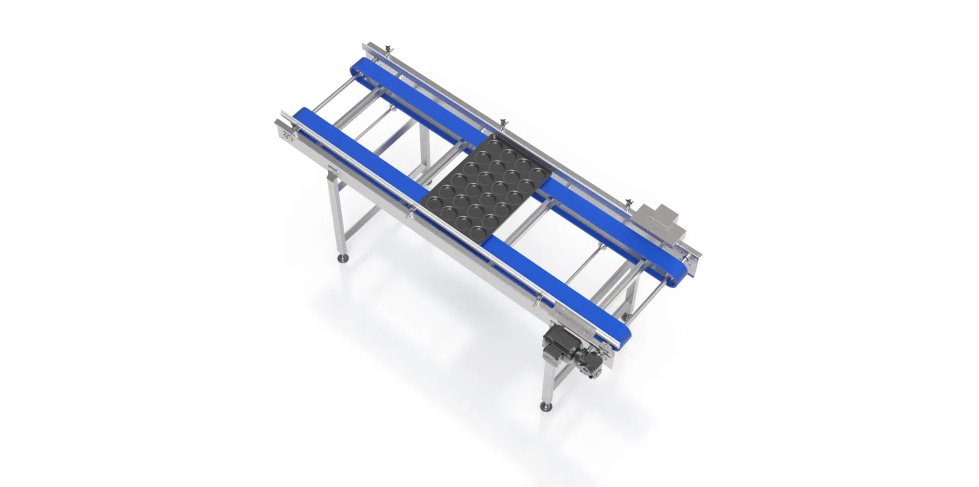

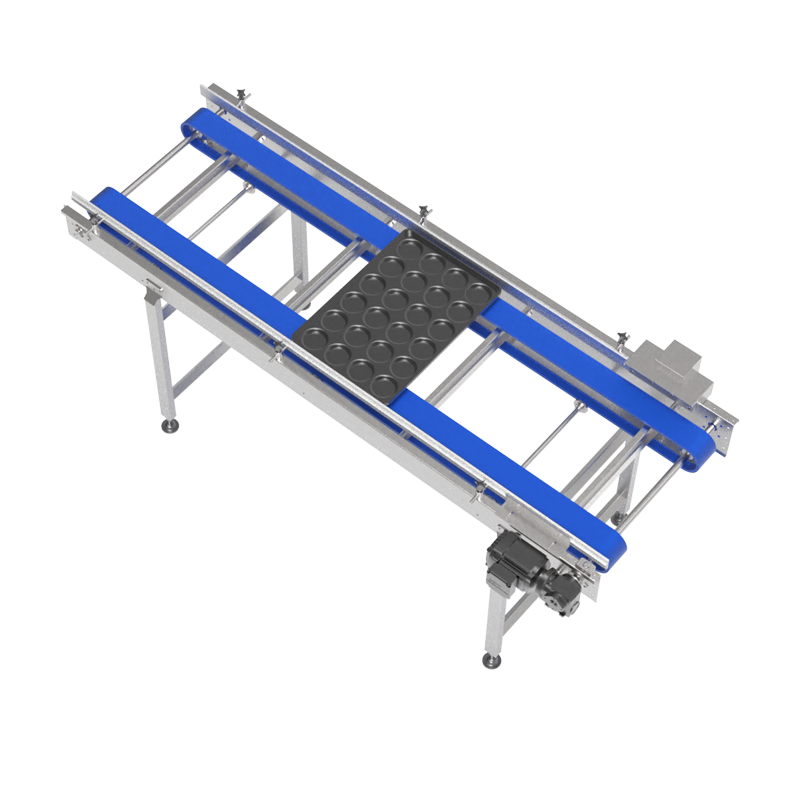

From dough to packaging – reliable conveying solutions for bread, pastry, and buns production lines.
Belt Material | FDA-approved PVC / PU / Modular Plastic |
|---|---|
Frame Material | Stainless Steel 304 (Food-grade) |
Drive System | Gear motor with frequency inverter |
Speed Range | 0 – 20 m/min (adjustable) |
Temperature Range | -20°C to 150°C |
Belt Width | 400 / 600 / 800 / 1000 mm (customizable) |
Length | Customized per layout |
Advantages
304 stainless steel construction, easy to clean and corrosion-resistant
Frequency control for perfect synchronization with upstream/downstream equipment
Modular design – quick installation and low maintenance
Optional belt types for dough, bread, biscuits, and pastries
Benefits to Your Bakery
Reduce manual handling → lower labor cost by 25%+
Gentle product handling → minimize dough damage, increase yield
Heat/oil/grease resistant → shorter cleaning downtime
Fully customizable length, width, angle, and belt type
Type | Best For |
|---|---|
Horizontal Belt Conveyor | Straight-line transfer before/after oven, cooling, packaging |
Incline Conveyor (Z-shaped) | Elevating dough from mixer to divider, linking multi-level lines |
Spiral Cooling Conveyor | High-capacity cooling after baking – saves floor space |
Accumulation Conveyor | Buffering products before packaging, automatic line balancing |
90° / 180° Curve Conveyor | Changing direction in tight plant layouts |
Standard Specifications (Customizable)
Belt width: 400 / 600 / 800 / 1000 mm
Length: As per layout
Motor power: 0.37 – 3.0 kW
Voltage: 220V / 380V / 415V, 50/60Hz, 3-phase
Frame: Stainless steel SUS304 or carbon steel with anti-rust coating
Certifications: CE, ISO 9001, FDA food-contact material
Typical Application Flow in a Bakery Line
Dough mixing → Proofing – Incline conveyor lifts dough to divider
Moulding → Oven – Horizontal belt feeds dough pieces into tunnel oven
Oven discharge → Cooling – Belt transfers baked bread to spiral conveyor
Cooling → Packaging – Accumulation conveyor buffers for automatic packer
Quality & Certifications
All conveyors tested before delivery (AQL 1.0)
Welding and surface finish inspected to food-grade standards
CE, ISO 9001, FDA certified materials
OEM / ODM Capabilities
Custom belt width, length, and angle (e.g., 30°, 45°, 60°)
Special belt materials for high-temperature or oily products
Custom painting color and company logo on drive guards
Tailored inlet/outlet chutes to fit existing equipment
Minimum Order & Trade Terms
MOQ: 1 set
Payment: T/T (30% deposit + 70% before shipment), L/C at sight
Lead time: 15–30 days depending on customization
Shipping: FOB Shanghai / Ningbo, or CIF to your port
Related Products
You May Need :
Spiral Cooling Tower
Dough Lifting Machine
Tunnel Oven Inlet/Outlet Tables
Automatic Bread Slicer
Q1: Are you a factory or a trading company?
A: We are a factory, Wuhan Kenxin Automation Technology Co., Ltd., located in Wuhan City, Hubei Province, China.
Q2: What materials are your products made of?
A: Food-grade aluminum, aluminum steel, stainless steel, etc.
Q3: Can I customize the product size?
A: Yes, you can. Please provide us with the detailed size requirements, and we will customize it according to your specifications.
Q4: Can I add my logo to the product?
A: We support on-demand customization, including logo customization, color customization, and size customization of the appearance.
Q5: How can I obtain an accurate quote?
A: You can first send us your specific requirements and product images. We will customize a solution for you based on your needs and inform you of the exact price.
